GFET-PV01 Quad Pack

GFET-PV01 Quad Pack

Regular price £362.00 GBP
Regular price Sale price £362.00 GBP
Sale Out of stock - contact us
Tax included. Shipping calculated at checkout.

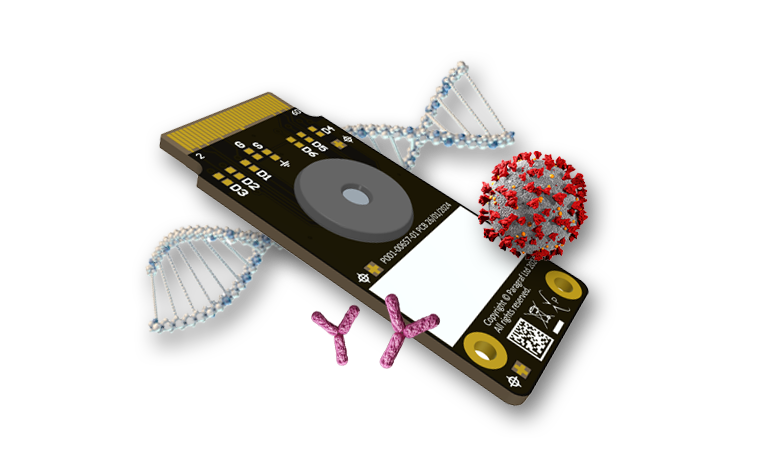

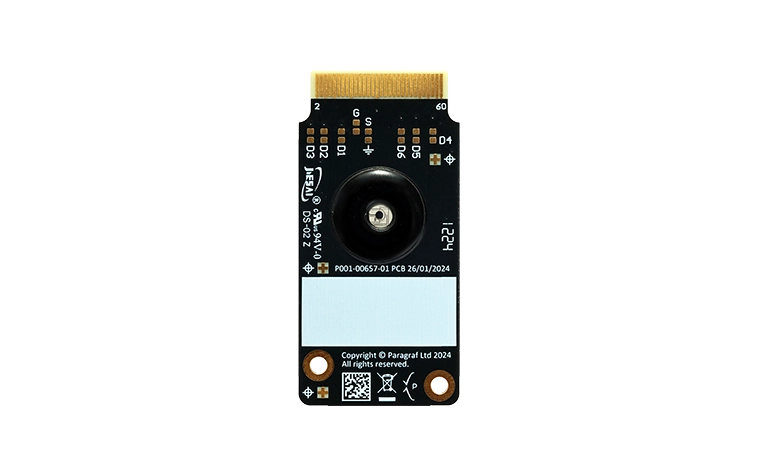

The Paragraf GFET-PV01 is an electrolyte-gated FET (field-effect transistor) mass-produced with a proprietary technique to deposit graphene directly on the device substrate. This produces a graphene channel completely free from polymers. The GFET-PV01 is designed with an in-plane platinum electrode to gate the transistor channel and the three graphene channels are equidistant from the central gate electrode. The design enables a completely homogeneous electric field during operation and an external gate electrode can also be used as required by the test application.

The GFET-PV01 is produced for developing sensing applications with an epoxy encapsulation layer allowing consistent liquid handling and alignment during sensor modification and test. In addition, the three channels are positioned to enable reliable manual or automated functionalisation of each graphene channel for multiplexing and/or internal referencing. The device is compatible with readily available data acquisition systems.

If you wish to purchase large volumes or availability below is limited, please contact help@paragraf.com

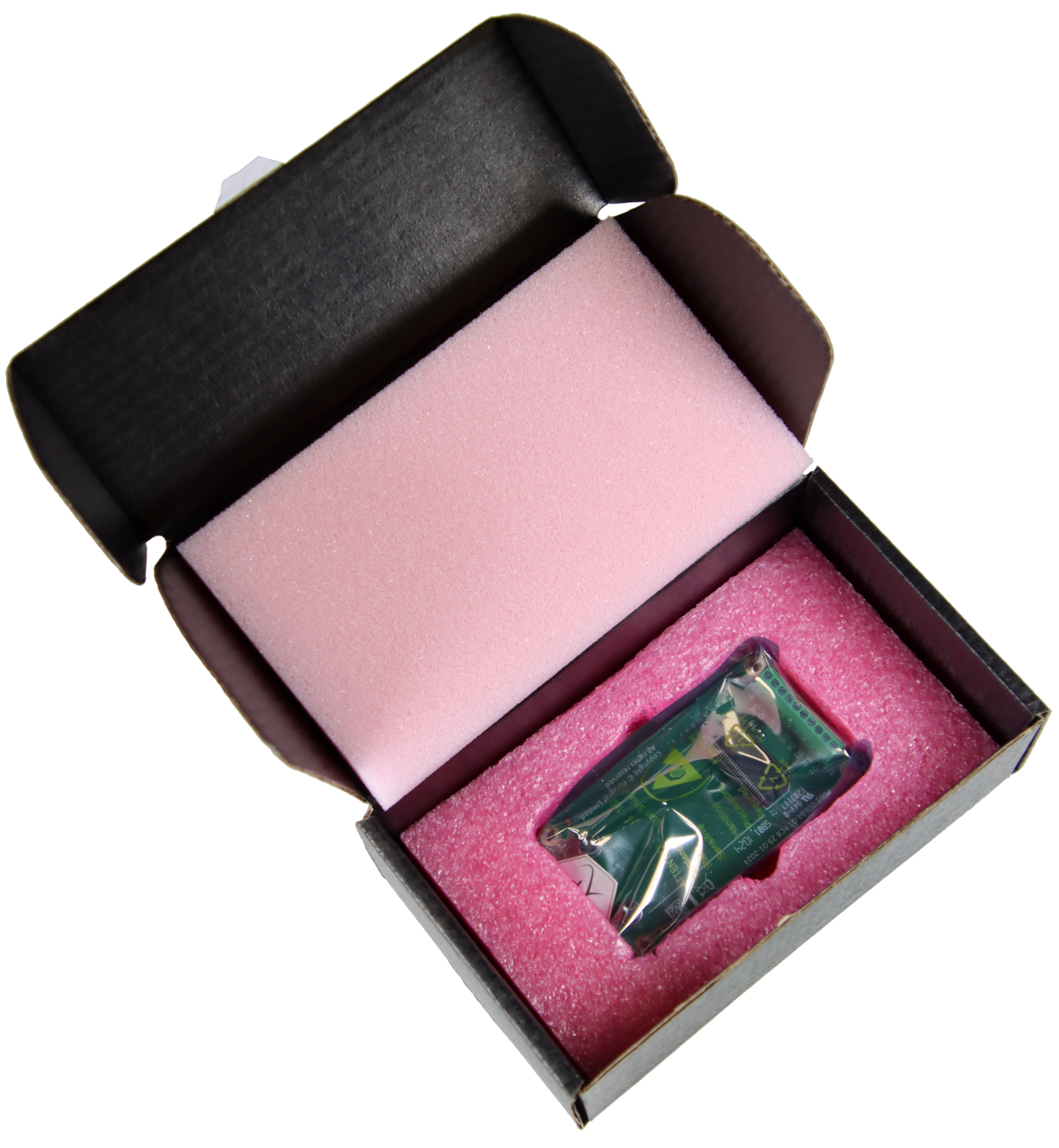

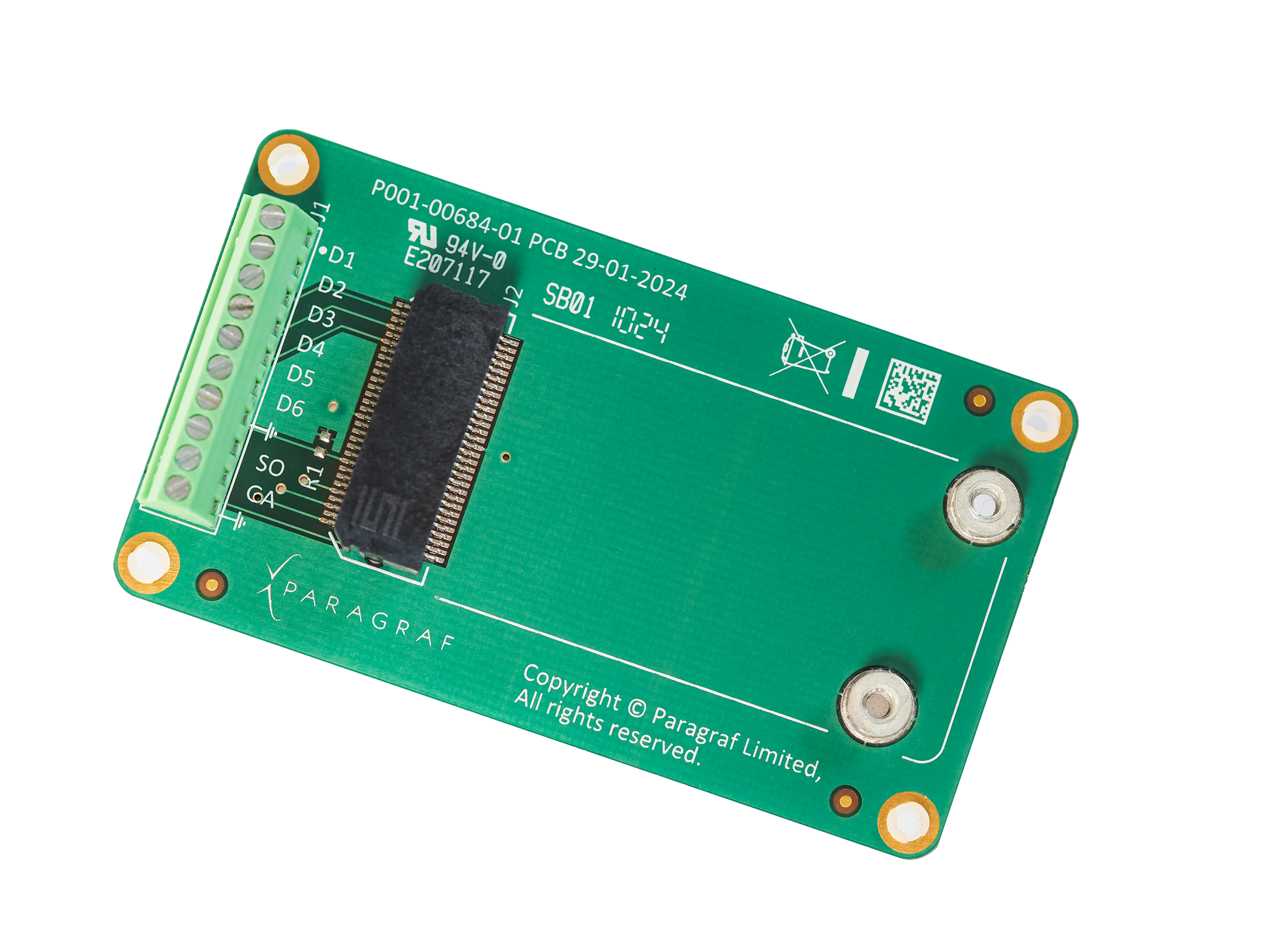

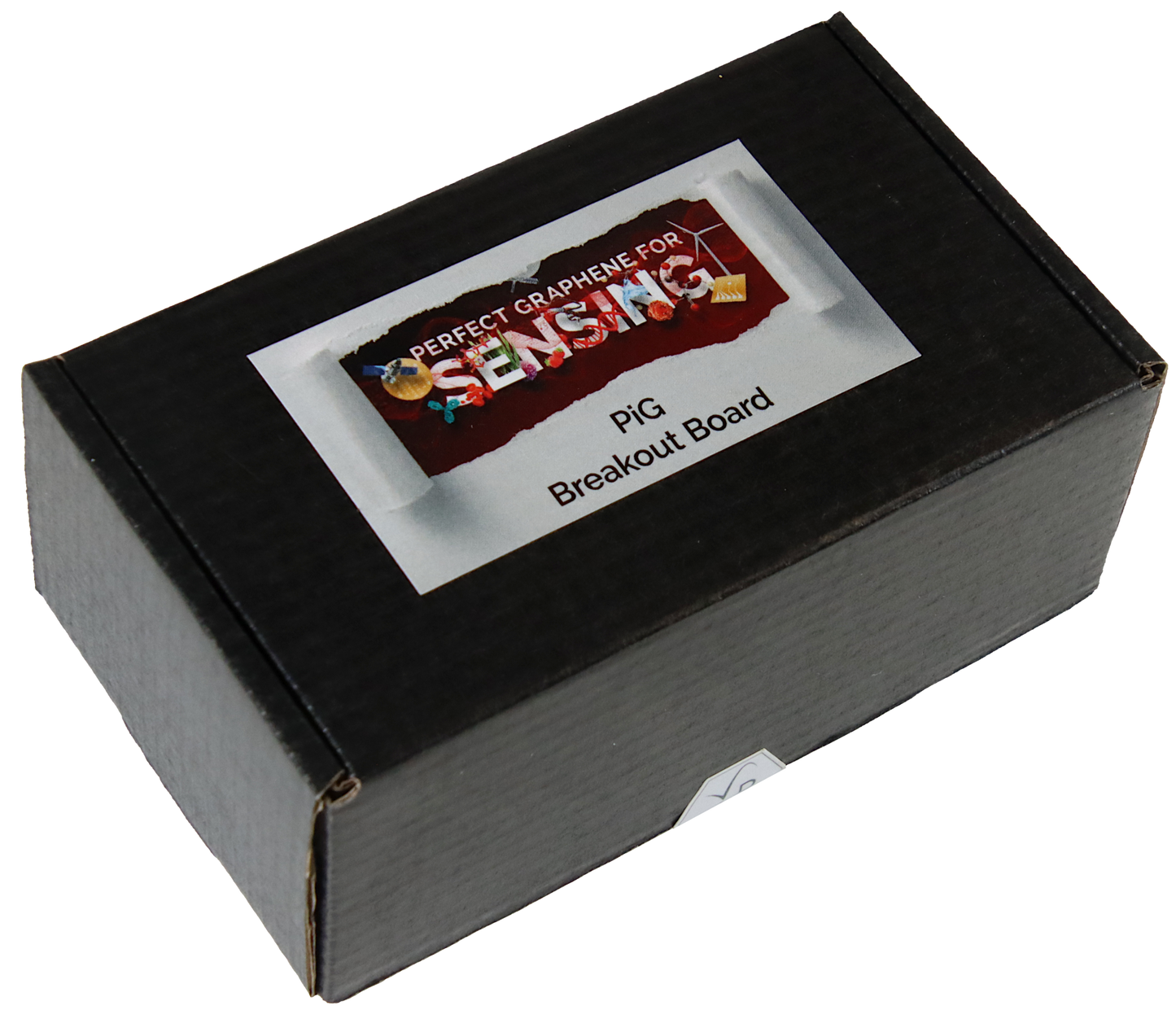

We recommend pairing the GFETs with our PiG Breakout Board, available here.

Specification

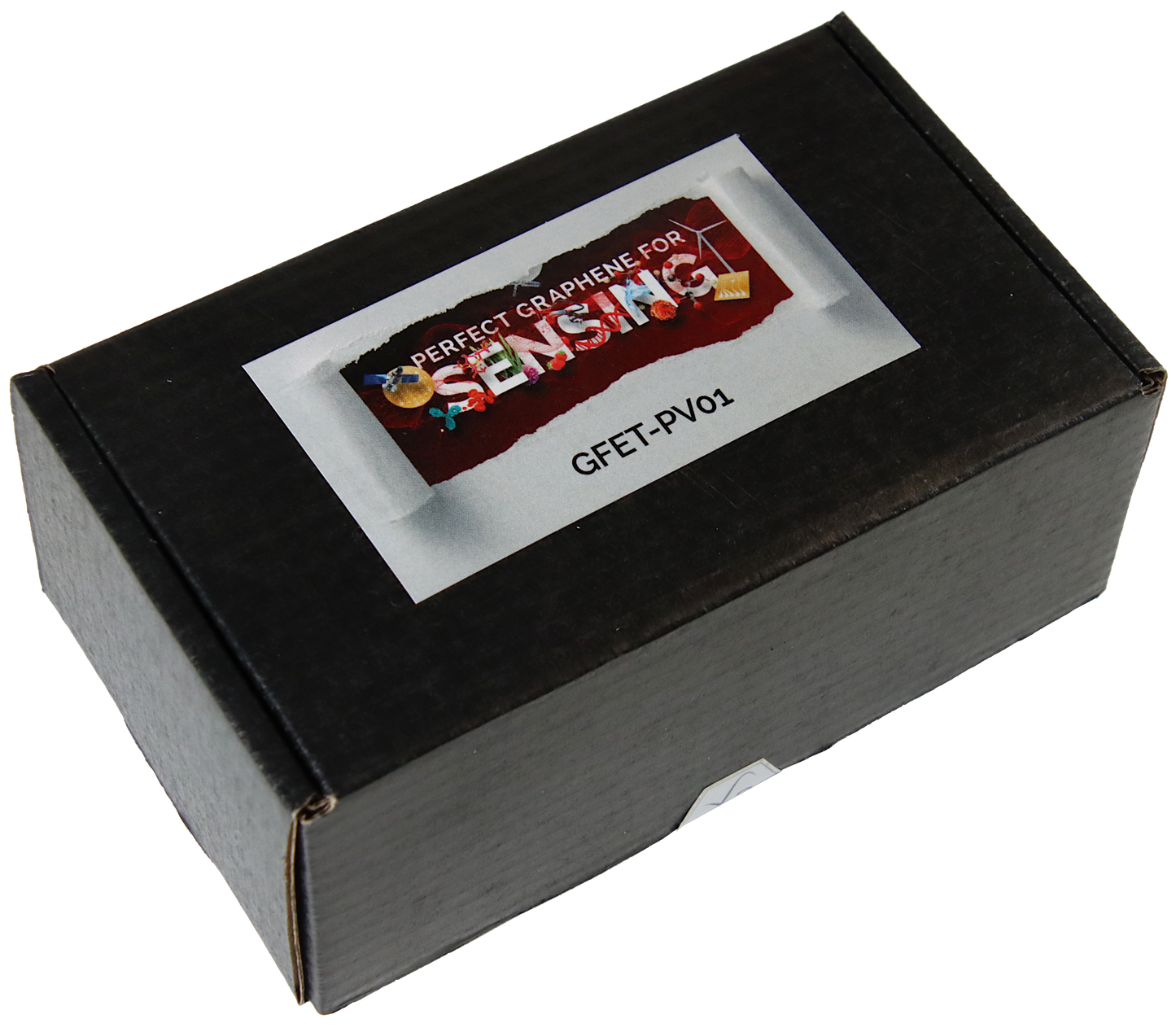

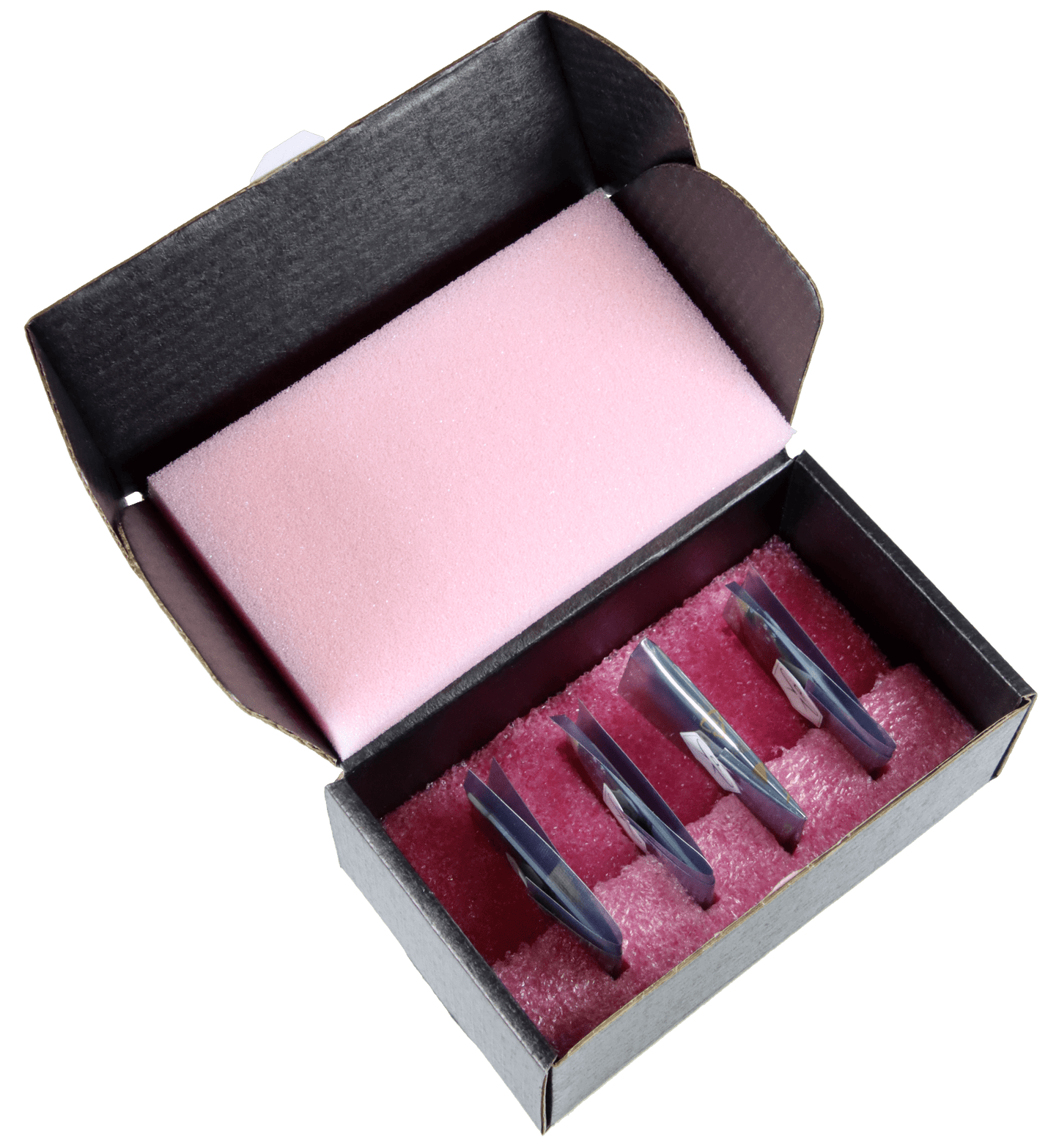

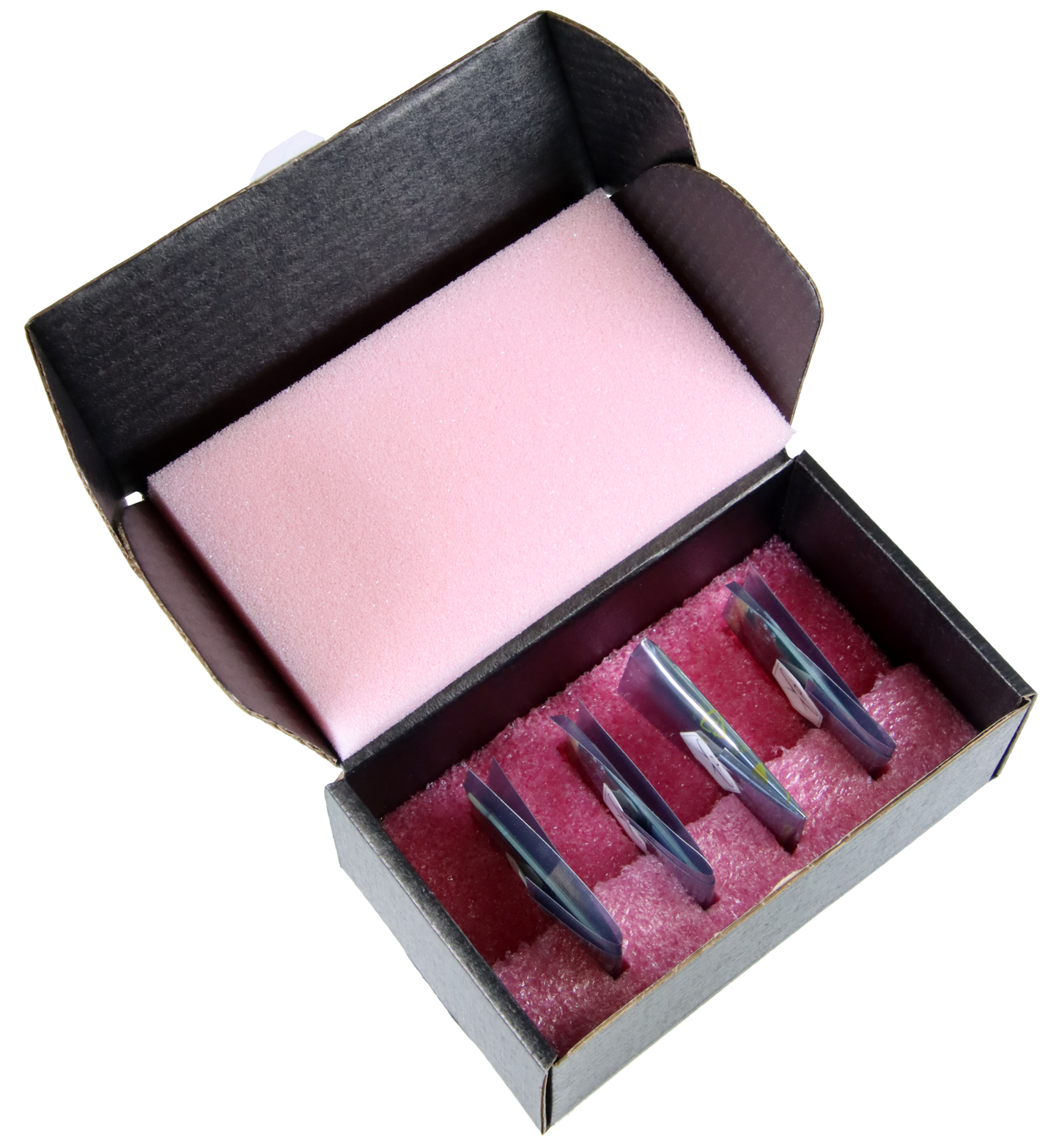

The GFET-PV01 quad pack includes 4 GFET-PV01 units.

Download Datasheet

No of GFET channels: 3

Dirac Point (mV): 500mV ±200mV

Transconductance (mS•sq/V): > 1.5

Channel resistance (kOhm): < 3

Channel dimensions (µm): 100 x 100

Shipping estimates

Lead time: Up to 30 business days

UK Standard: 1-2 Business Days

EU Standard International: 2-4 Business Days

RoW Standard International: 2-6 Business Days

  • Buy 5 Save 10%
  • Buy 10 Save 20%

BY PURCHASING ANY PARAGRAF PRODUCTS THROUGH THIS WEBSITE, you hereby agree to and accept our terms of sale.

View full details

We also recommend

If you don't see what you need, ask us

Paragraf produces a range of hall effect sensors and GFETs for different customers, please contact us with your specific requirments
